Asbestos Gauge Gasket

Compressed asbestos-fiber gaskets provide reliable sealing and cushioning between gauge glass and the metal body in compatible industrial liquid level gauges.

Technical Specifications

Product Type	Gasket
Material	Compressed Asbestos Fiber with Rubber Binder
Temperature	Up to 450°C, depending on grade
Pressure	1.6–6.0 MPa, depending on grade
Available Shapes	Rectangular, Rings & Custom Gaskets

Suitable for reflex and transparent level gauge assemblies.
Standard sizes for DIN-style gauge glass are available.
Custom dimensions and oil-resistant grades are available upon request.

Request a Quote

Email Us

Gaskets & Accessories

Product Description

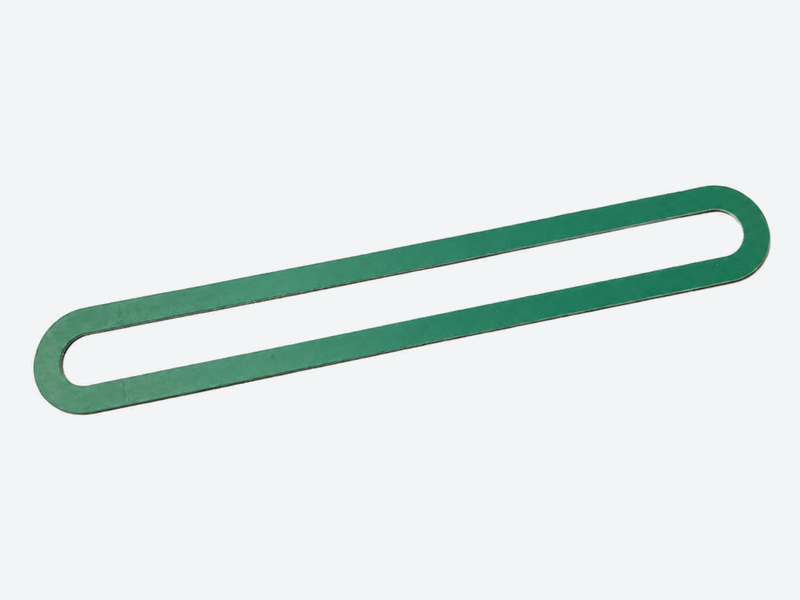

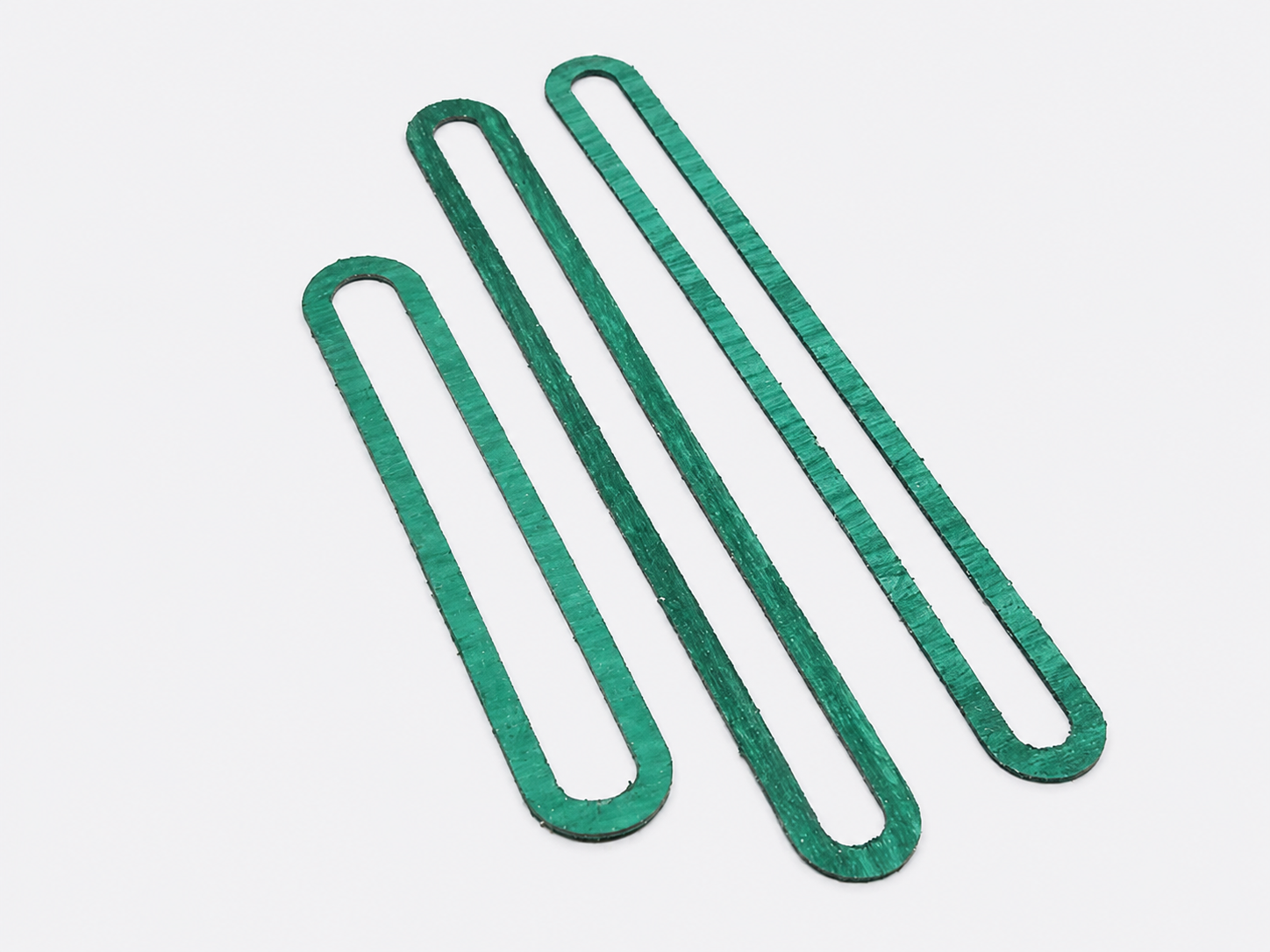

Asbestos Gauge Gaskets are sealing and cushioning components installed between the gauge glass and the metal chamber or cover of an industrial liquid level gauge. When properly compressed, the gasket fills small surface irregularities and helps prevent leakage around the glass.

The compressed sheet material is generally manufactured from asbestos fibers combined with a heat-resistant rubber binder and selected fillers. This construction provides good compressibility, recovery, dimensional stability and resistance to water, steam, oils and many general industrial fluids.

These gaskets are commonly supplied for reflex and transparent level gauges used on boilers, tanks, pressure vessels, pipelines and process equipment. Standard rectangular sizes are available to match commonly used DIN-style gauge glass. Custom-cut gaskets can also be produced from drawings or physical samples.The correct gasket grade must be selected according to the operating medium, temperature, pressure and gauge design.

Asbestos-containing gasket materials are subject to regional regulations. Availability should be confirmed according to the destination market. Non-asbestos Gasket, Graphite Gasket and PTFE Gasket alternatives are available.

Sizes and Dimensions

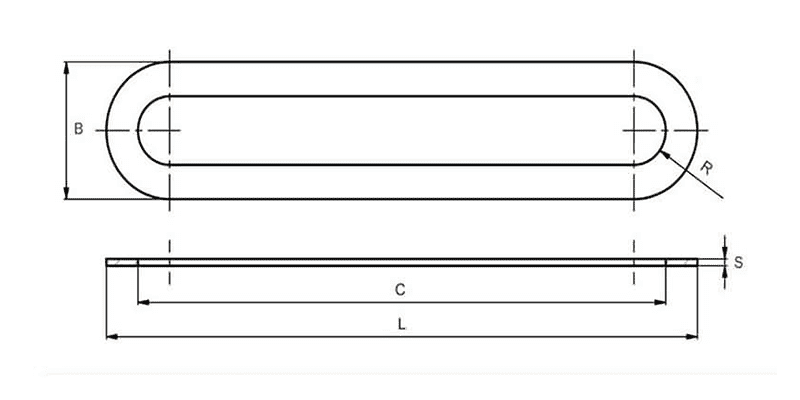

Asbestos gauge glass gaskets are available in two standard widths to match commonly used reflex and transparent level gauge assemblies. Standard thicknesses are 1.0 mm, 1.5 mm and 2.0 mm.

		Type A
Product Code	Length L (mm)	Width B (mm)	Thickness S (mm)	Opening Length C (mm)
GA00	95	30	1.0 / 1.5 / 2.0	79
GA01	115	30	1.0 / 1.5 / 2.0	99
GA02	140	30	1.0 / 1.5 / 2.0	124
GA03	165	30	1.0 / 1.5 / 2.0	149
GA04	190	30	1.0 / 1.5 / 2.0	174
GA05	220	30	1.0 / 1.5 / 2.0	204
GA06	250	30	1.0 / 1.5 / 2.0	234
GA07	280	30	1.0 / 1.5 / 2.0	264
GAO8	320	30	1.0 / 1.5 / 2.0	304
GA09	340	30	1.0 / 1.5 / 2.0	324
GA10	370	30	1.0 / 1.5 / 2.0	354
GA11	400	30	1.0 / 1.5 / 2.0	384

Type B
Product Code	Length L (mm)	Width B (mm)	Thickness S (mm)	Opening Length C (mm)
GB00	95	34	1.0 / 1.5 / 2.0	75
GB01	115	34	1.0 / 1.5 / 2.0	95
GB02	140	34	1.0 / 1.5 / 2.0	120
GB03	165	34	1.0 / 1.5 / 2.0	145
GB04	190	34	1.0 / 1.5 / 2.0	170
GB05	220	34	1.0 / 1.5 / 2.0	200
GB06	250	34	1.0 / 1.5 / 2.0	230
GB07	280	34	1.0 / 1.5 / 2.0	260
GB08	320	34	1.0 / 1.5 / 2.0	300
GB09	340	34	1.0 / 1.5 / 2.0	320
GB10	370	34	1.0 / 1.5 / 2.0	350
GB11	400	34	1.0 / 1.5 / 2.0	380

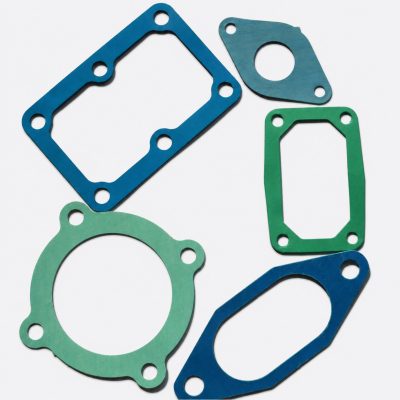

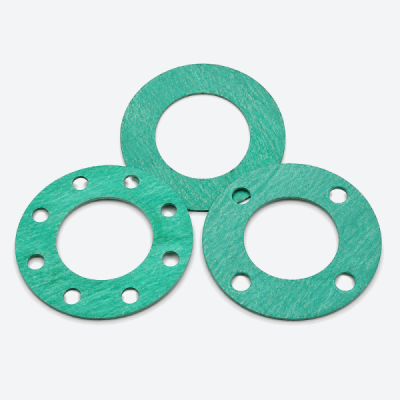

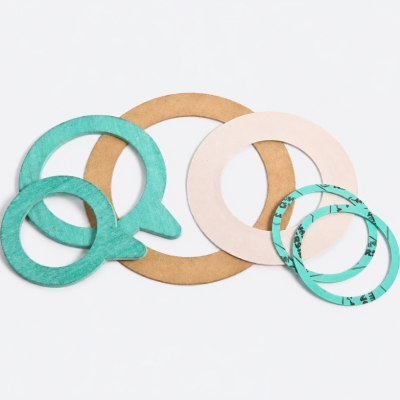

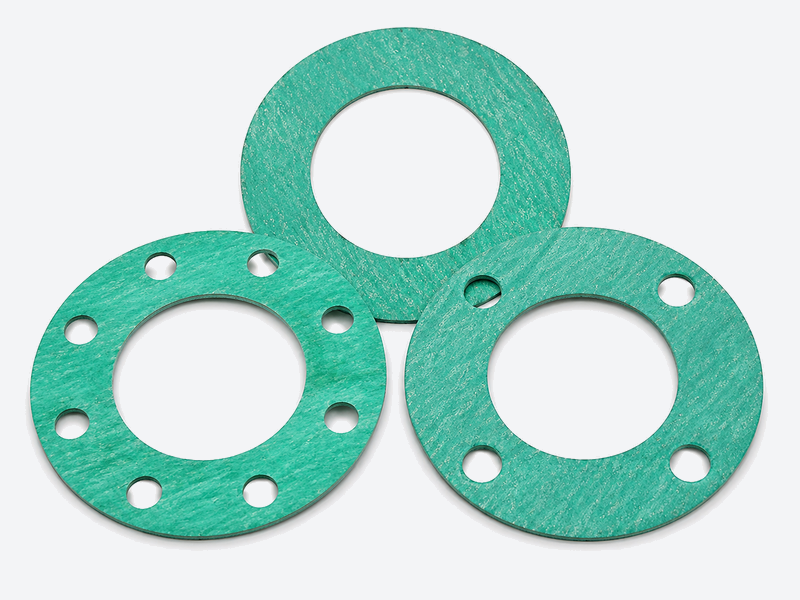

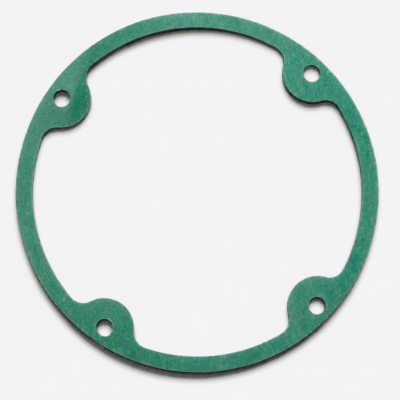

Custom sizes: Rectangular, oval, circular and drawing-specific gaskets can be manufactured. For an accurate quotation, customers should provide the outer length, outer width, opening dimensions, thickness, operating medium, temperature and pressure.

Asbestos-free fiber, mica gasket, graphite and PTFE gauge glass gaskets are also available for applications where asbestos-containing materials are restricted.
