Graphite Gasket
Flexible graphite gaskets provide reliable sealing under high temperatures and fluctuating pressure.
Technical Specifications
| Product Type | Gaskets |
|---|---|
| Material | Flexible expanded graphite |
| Reinforcement | Plain graphite, SS304/SS316 foil or tanged insert |
| Temperature | −200°C to +450°C |
| Customization | Gauge gaskets, ring gaskets and custom gaskets |
- Gauge, ring and custom-shaped gaskets are available.
- Standard and custom sizes are manufactured to order.
- Compatible gauge glass and sealing accessories are available upon request.
Gaskets & Accessories
Product Description
Kunyo graphite gaskets are manufactured from flexible expanded graphite for sealing applications involving elevated temperatures, steam, oils, fuels and many industrial chemicals. The material is compressible and conforms closely to minor irregularities in the sealing surface, helping produce an effective seal under moderate clamping loads.
Compared with many compressed-fiber materials, flexible graphite has excellent thermal stability and low creep relaxation. It maintains sealing performance through repeated heating and cooling cycles and is therefore suitable for level gauges, boilers, valves, pumps, pipe flanges, heat exchangers and other industrial equipment.
The available product range includes:

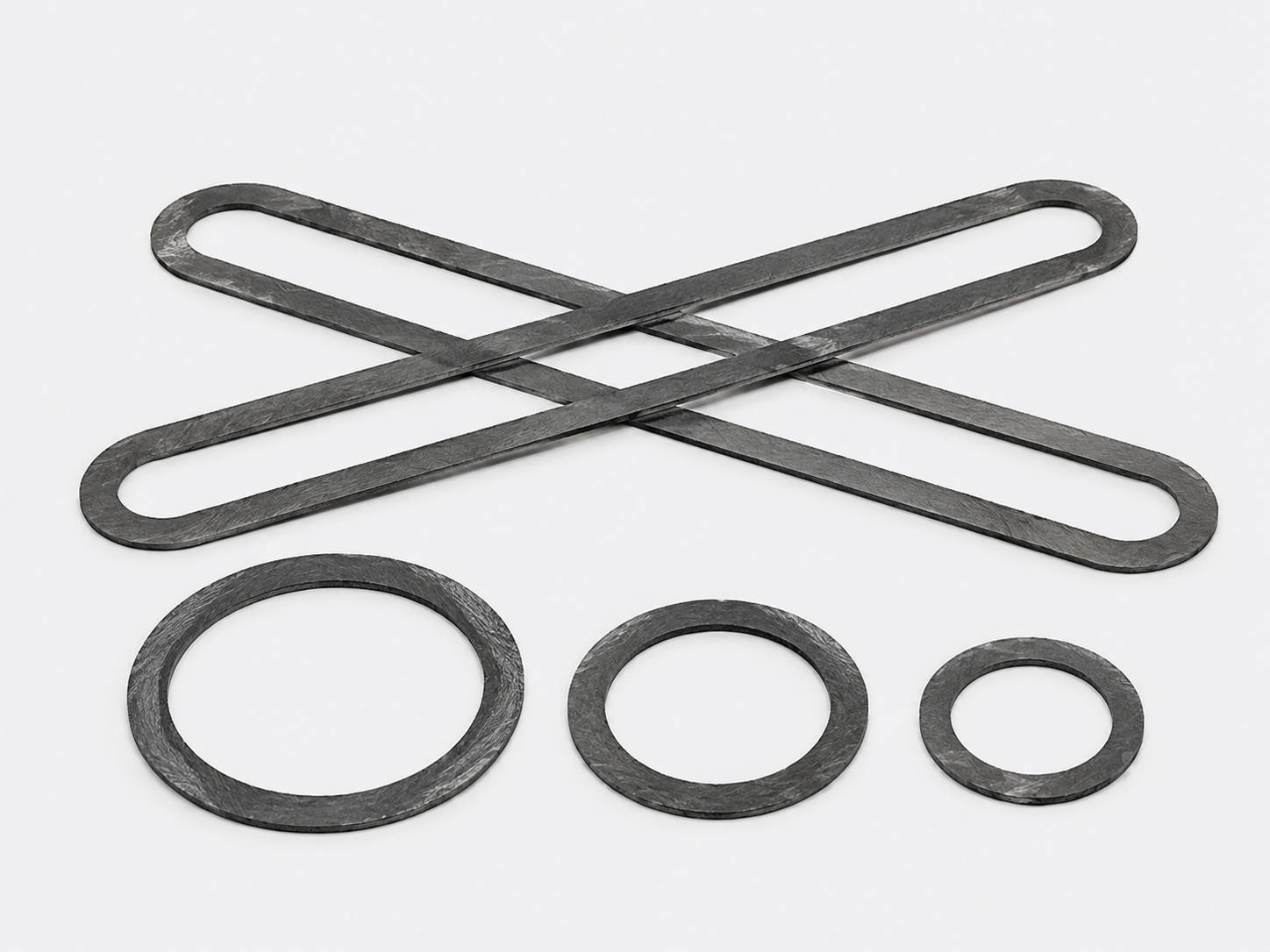

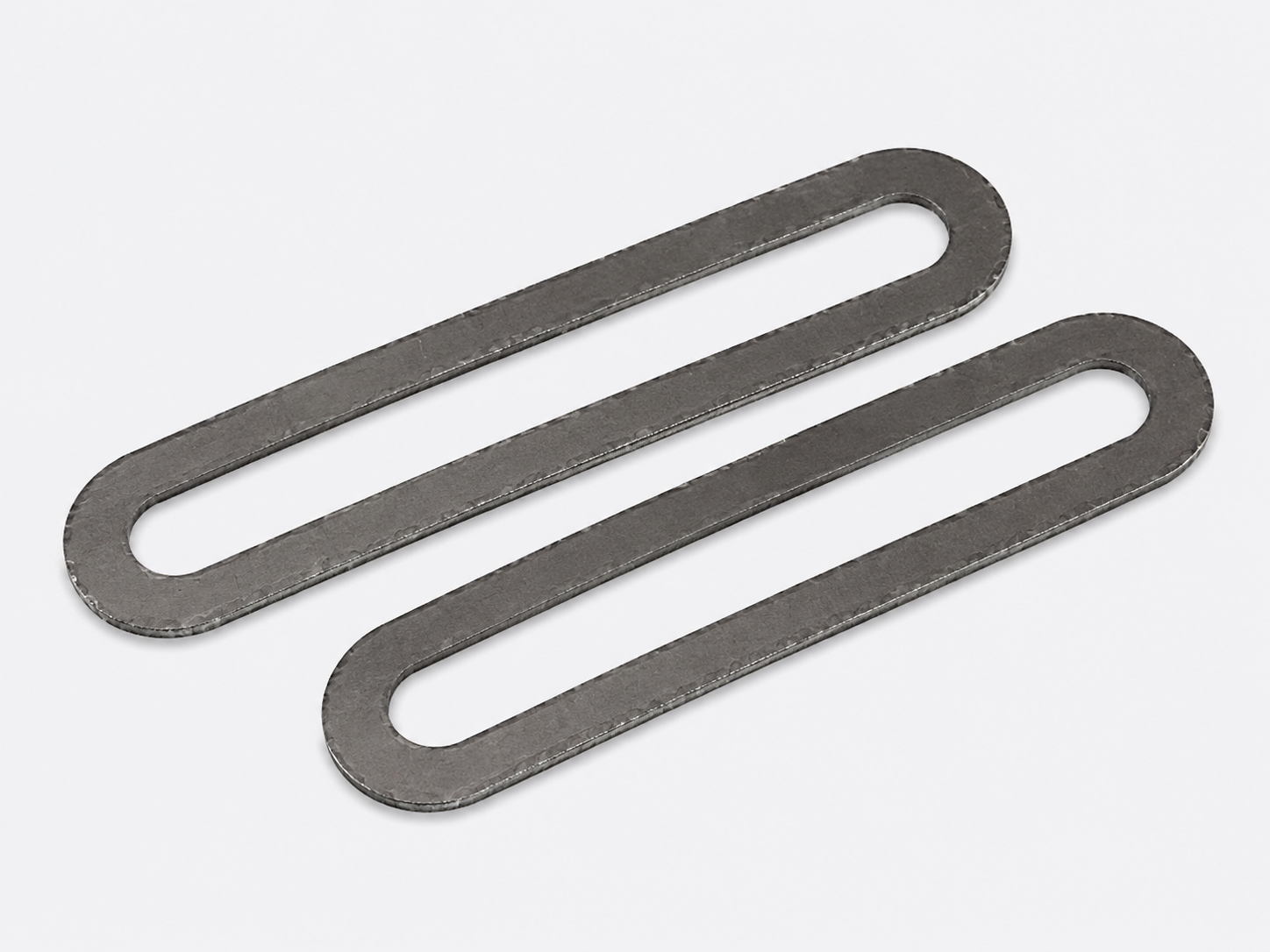

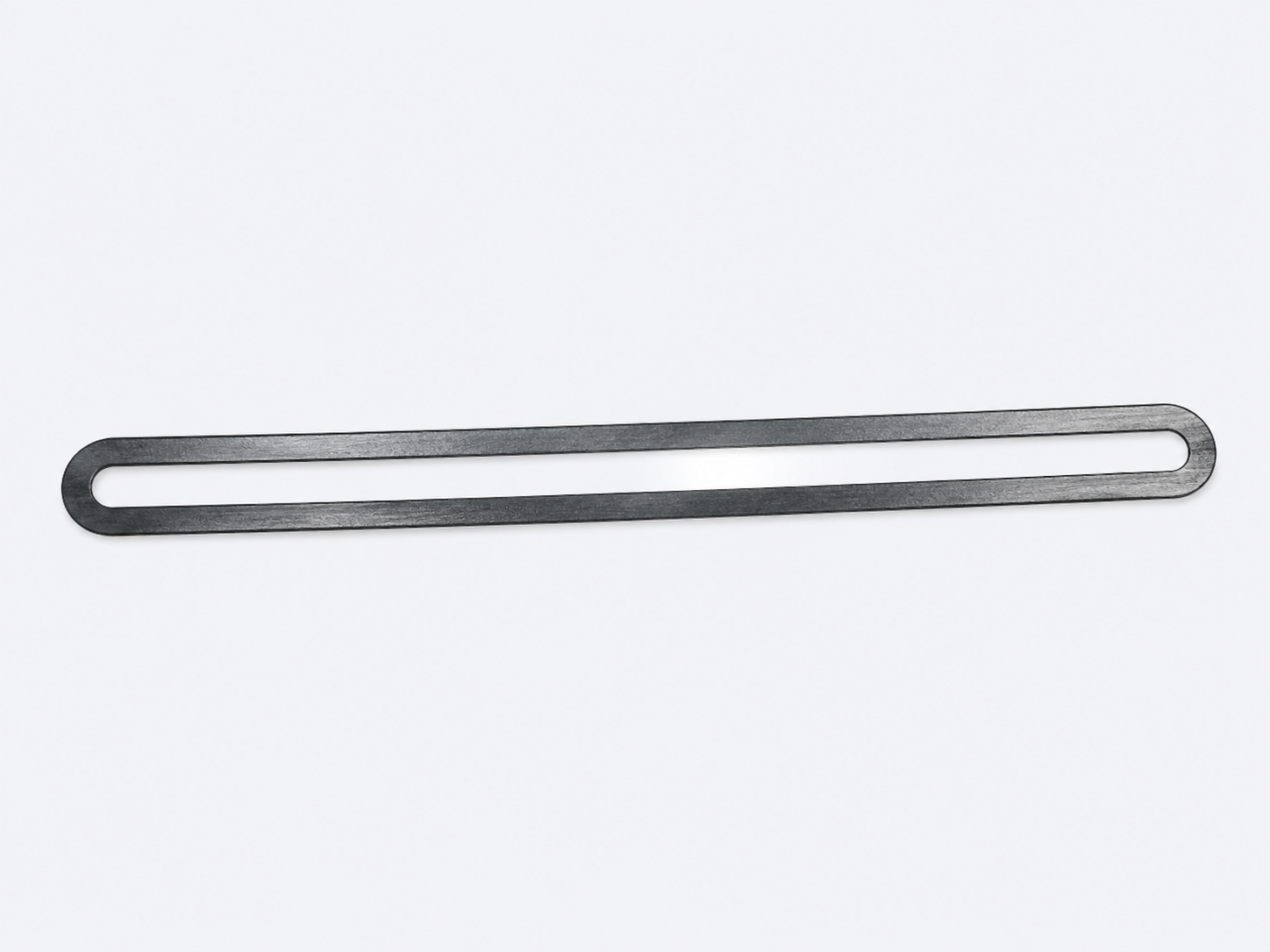

Graphite Gauge Gaskets: Rectangular or obround gaskets designed for reflex and transparent level gauge glasses.
Graphite Ring Gaskets: Circular or annular gaskets for round sight glasses, oil-level indicators, fittings and flange connections.
Die-Formed Graphite Rings: Molded graphite sealing rings for valves, pumps and specialized equipment.

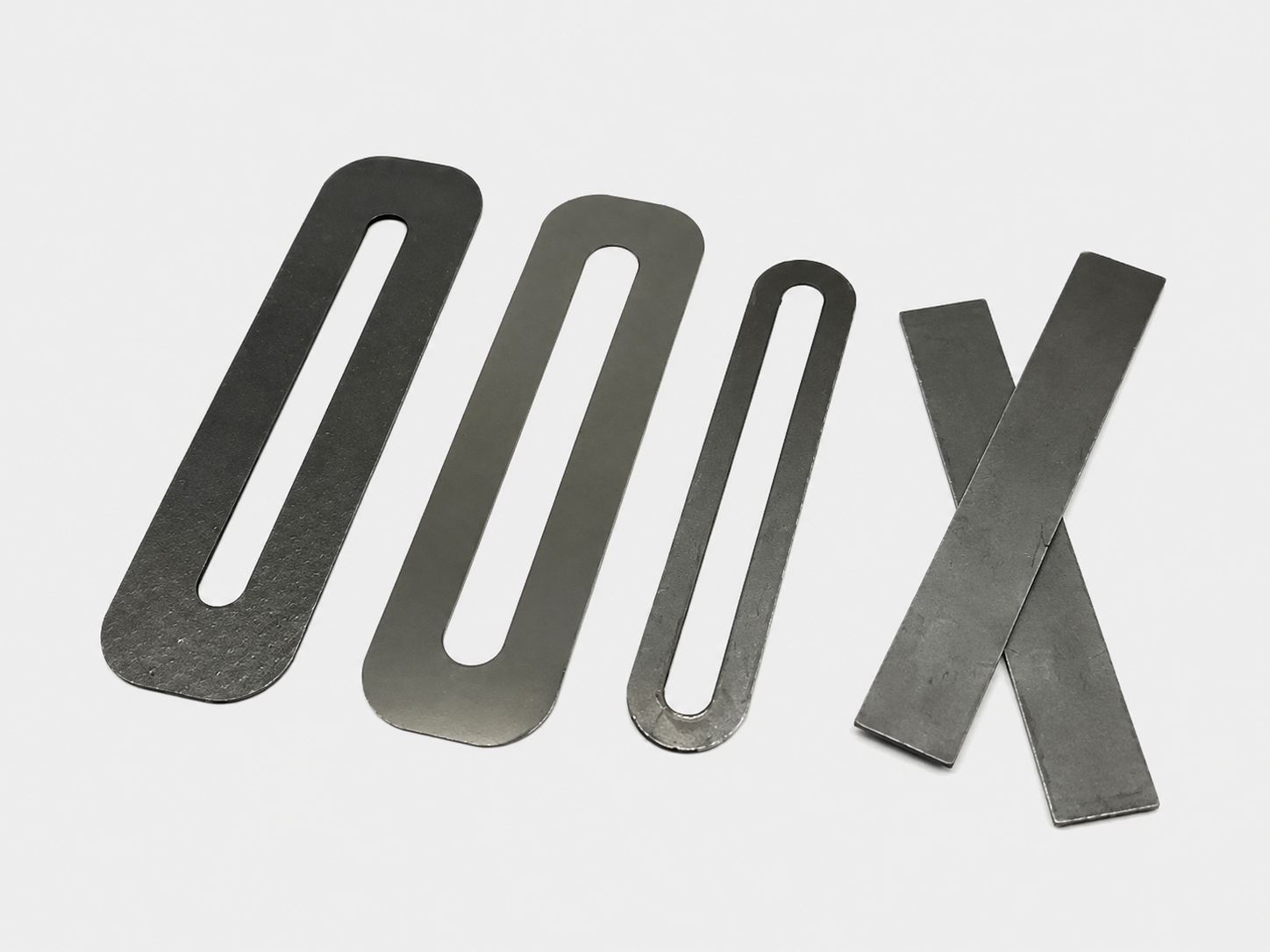

Reinforced Graphite Gaskets: Flexible graphite combined with smooth or tanged stainless-steel inserts for improved pressure resistance and handling strength.
Custom Graphite Gaskets: Manufactured according to drawings, samples or specified inside and outside dimensions.
Sizes
The following standard sizes are available for graphite gauge gaskets used with reflex and transparent gauge glass. Custom shapes and dimensions are available upon request.
Graphite Gauge Gasket Sizes
| Type A | ||||

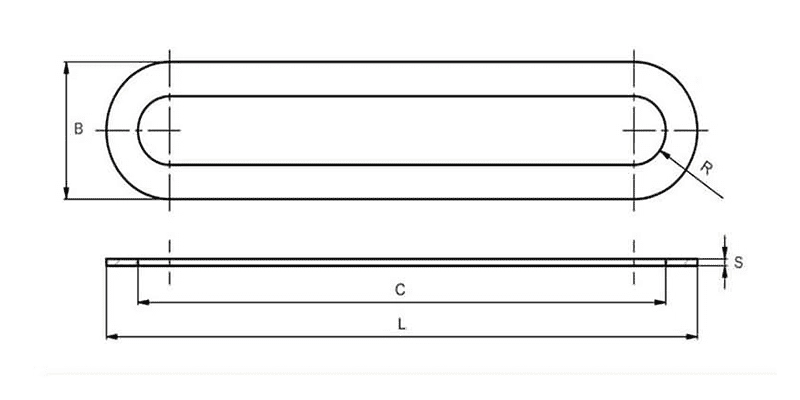

| Product Code | Length L (mm) | Width B (mm) | Thickness S (mm) | Opening Length C (mm) |
| GA00 | 95 | 30 | 1.0 / 1.5 / 2.0 | 79 |
| GA01 | 115 | 30 | 1.0 / 1.5 / 2.0 | 99 |
| GA02 | 140 | 30 | 1.0 / 1.5 / 2.0 | 124 |
| GA03 | 165 | 30 | 1.0 / 1.5 / 2.0 | 149 |
| GA04 | 190 | 30 | 1.0 / 1.5 / 2.0 | 174 |
| GA05 | 220 | 30 | 1.0 / 1.5 / 2.0 | 204 |
| GA06 | 250 | 30 | 1.0 / 1.5 / 2.0 | 234 |
| GA07 | 280 | 30 | 1.0 / 1.5 / 2.0 | 264 |
| GA08 | 320 | 30 | 1.0 / 1.5 / 2.0 | 304 |
| GA09 | 340 | 30 | 1.0 / 1.5 / 2.0 | 324 |
| GA10 | 370 | 30 | 1.0 / 1.5 / 2.0 | 354 |
| GA11 | 400 | 30 | 1.0 / 1.5 / 2.0 | 384 |
| Type B | ||||
| Product Code | Length L (mm) | Width B (mm) | Thickness S (mm) | Opening Length C (mm) |
| GB00 | 95 | 34 | 1.0 / 1.5 / 2.0 | 75 |
| GB01 | 115 | 34 | 1.0 / 1.5 / 2.0 | 95 |
| GB02 | 140 | 34 | 1.0 / 1.5 / 2.0 | 120 |
| GB03 | 165 | 34 | 1.0 / 1.5 / 2.0 | 145 |
| GB04 | 190 | 34 | 1.0 / 1.5 / 2.0 | 170 |
| GB05 | 220 | 34 | 1.0 / 1.5 / 2.0 | 200 |
| GB06 | 250 | 34 | 1.0 / 1.5 / 2.0 | 230 |
| GB07 | 280 | 34 | 1.0 / 1.5 / 2.0 | 260 |
| GB08 | 320 | 34 | 1.0 / 1.5 / 2.0 | 300 |
| GB09 | 340 | 34 | 1.0 / 1.5 / 2.0 | 320 |
| GB10 | 370 | 34 | 1.0 / 1.5 / 2.0 | 350 |
| GB11 | 400 | 34 | 1.0 / 1.5 / 2.0 | 380 |
