YWZ Oil Level Gauge
The YWZ gauge provides clear, direct monitoring of oil level and temperature in hydraulic reservoirs, lubrication systems, cooling tanks and gearboxes.
Technical Specifications
| Product Type | Oil level gauge |
|---|---|
| Model Series | YWZ / YWZ-T |
| Center-to-Center Distance | 76–500 mm |
| Temperature Range | −20°C to +100°C (YWZ-T models) |
| Working Pressure | 0.10–0.15 MPa |
| Mounting | Two-bolt side mounting, M10 |
| Application | Hydraulic oil tanks and lubrication systems |
- Oil level can be checked directly, with temperature indication available on YWZ-T models.
- Standard and custom mounting centers are available.
- Seals and mounting accessories are available upon request.
Oil Level Indicator
Product Description

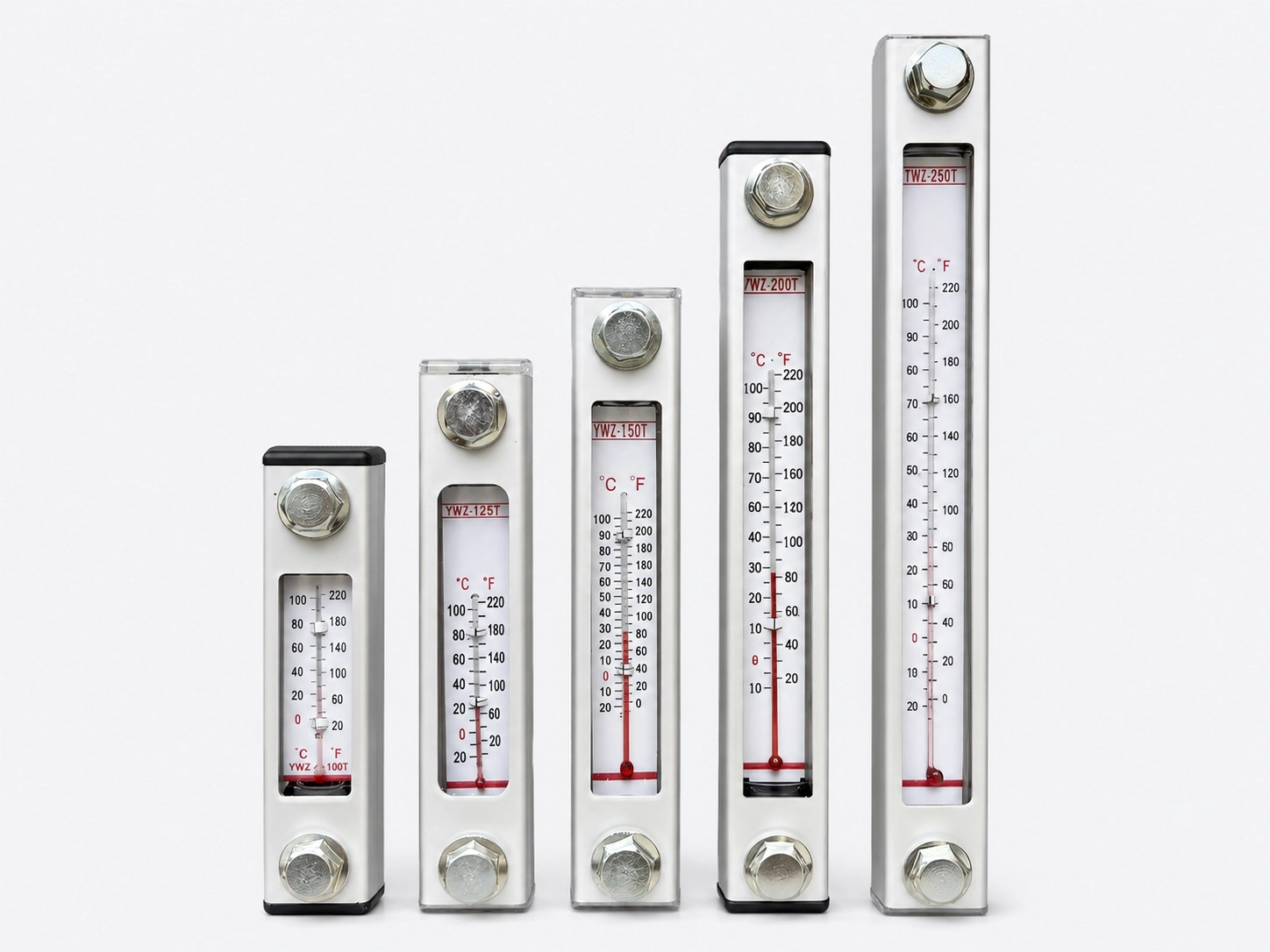

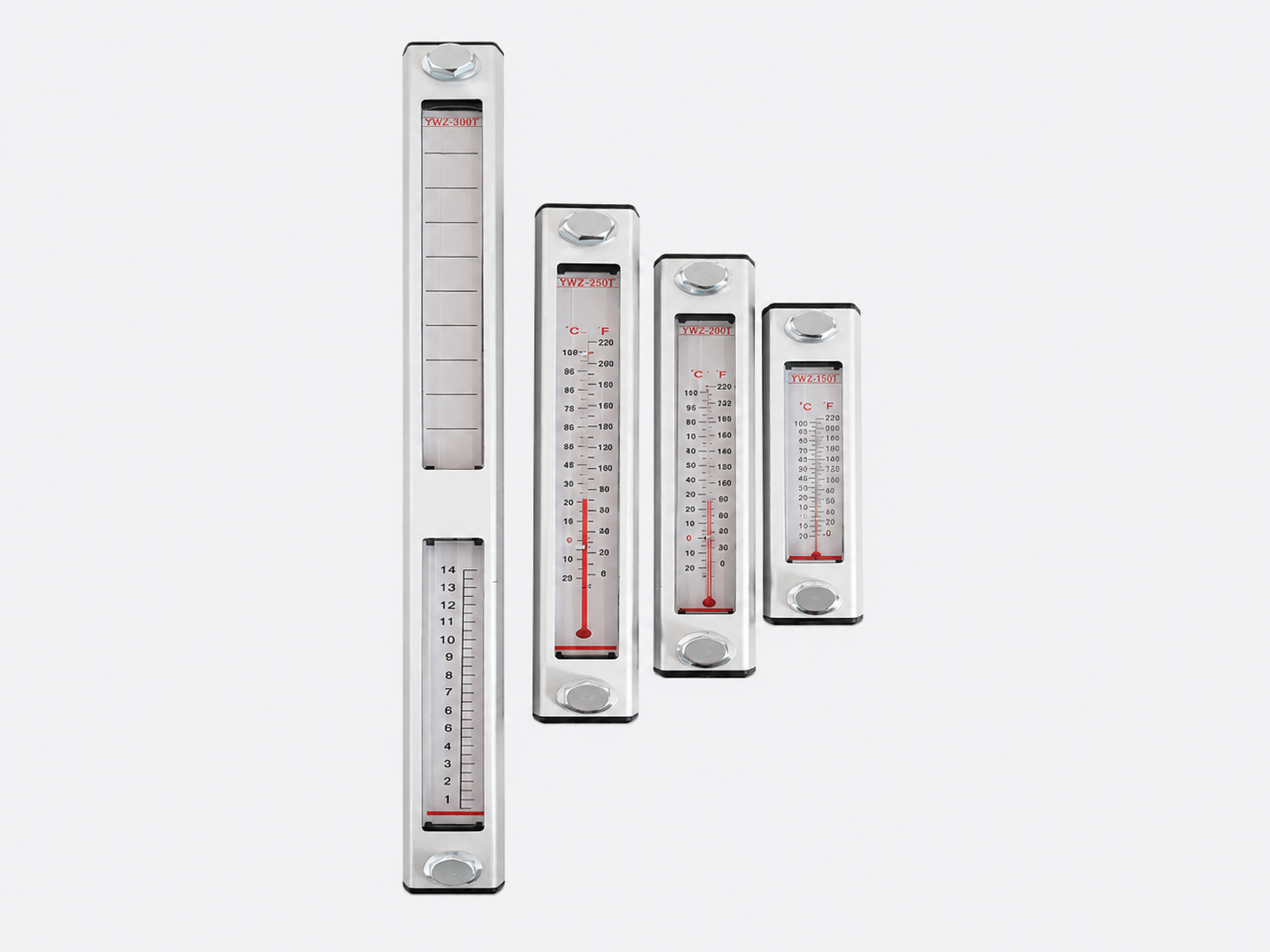

YWZ Oil Level Gauges are designed for direct oil level monitoring in hydraulic reservoirs, lubrication systems and industrial equipment. Standard YWZ models provide clear oil level indication, while YWZ-T models combine oil level monitoring with an integrated temperature display.

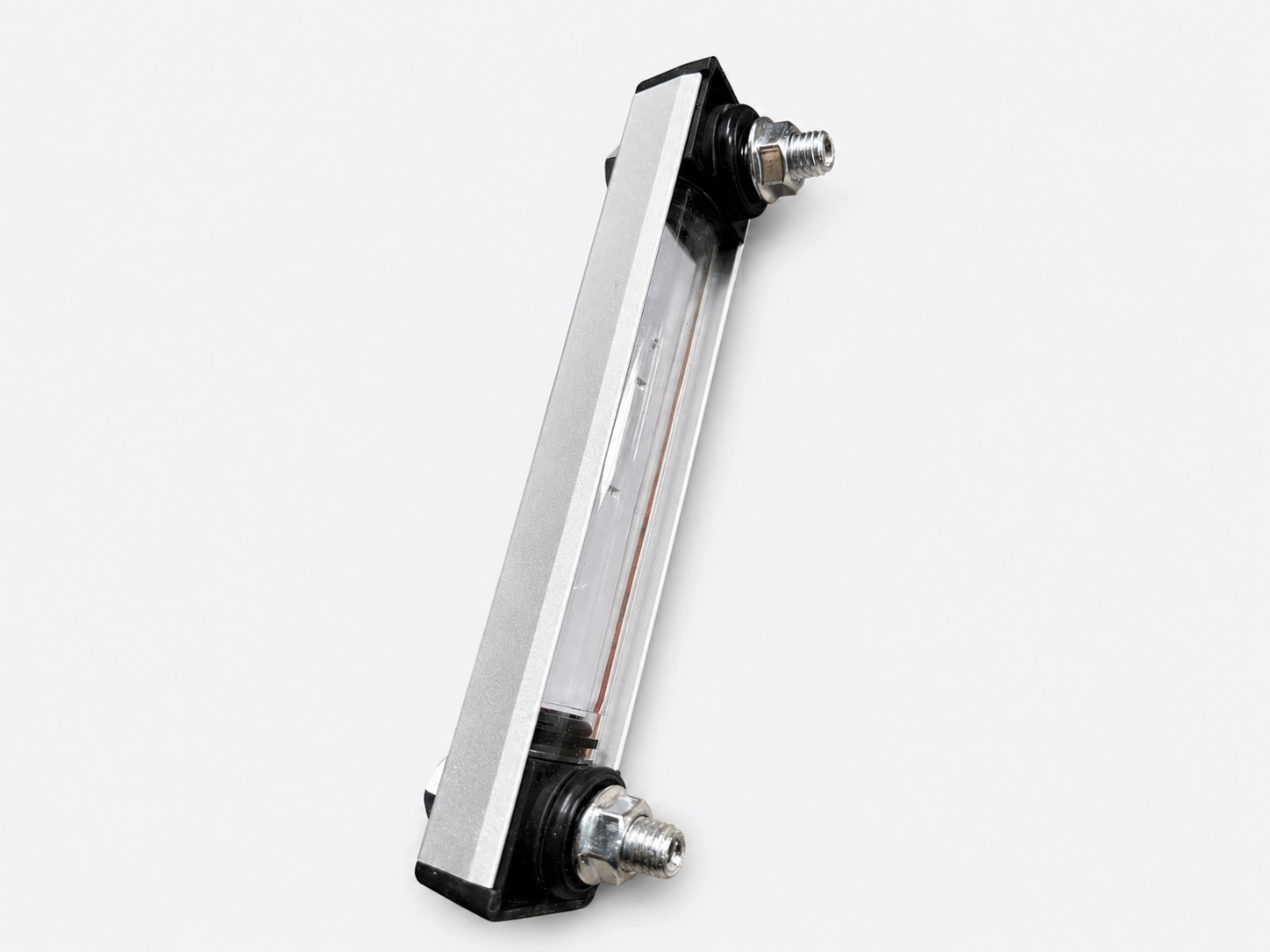

The gauge is installed vertically on the side wall of the reservoir using two mounting bolts. The model number normally represents the center-to-center distance between the mounting connections. For example, YWZ-150T has a 150 mm mounting center, while “T” indicates the temperature-reading version.

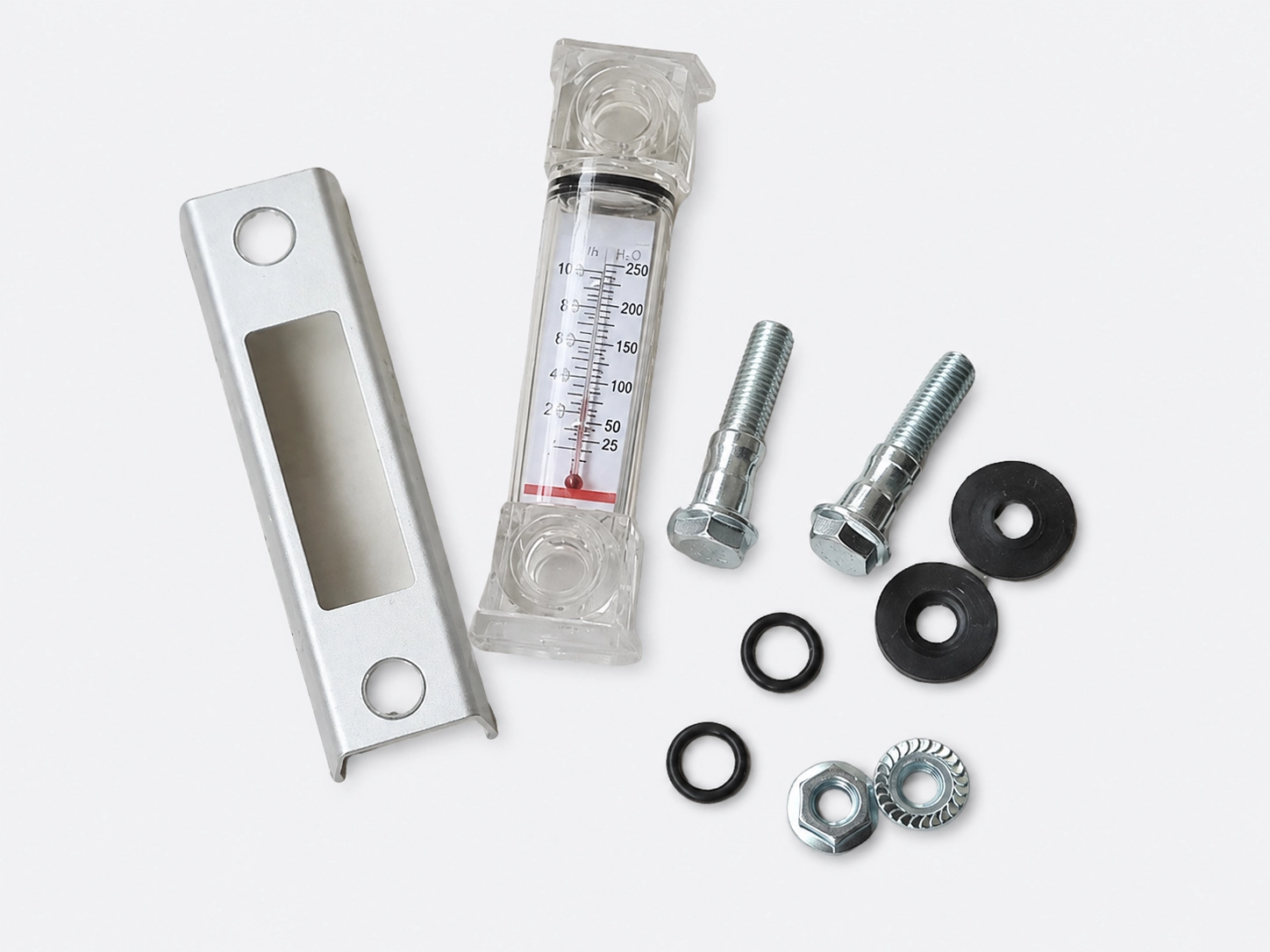

A protective housing helps shield the transparent indicator from accidental impact. Sealing washers installed between the gauge and tank wall help provide a secure, leak-resistant connection. Its compact construction and clear display make the YWZ series suitable for routine inspection of oil level and operating temperature without electrical power.
Common applications include:
- Hydraulic power units
- Machine-tool oil tanks
- Industrial lubrication systems
- Gearboxes and reduction units
- Mobile and construction equipment
- Cooling and circulating-oil reservoirs

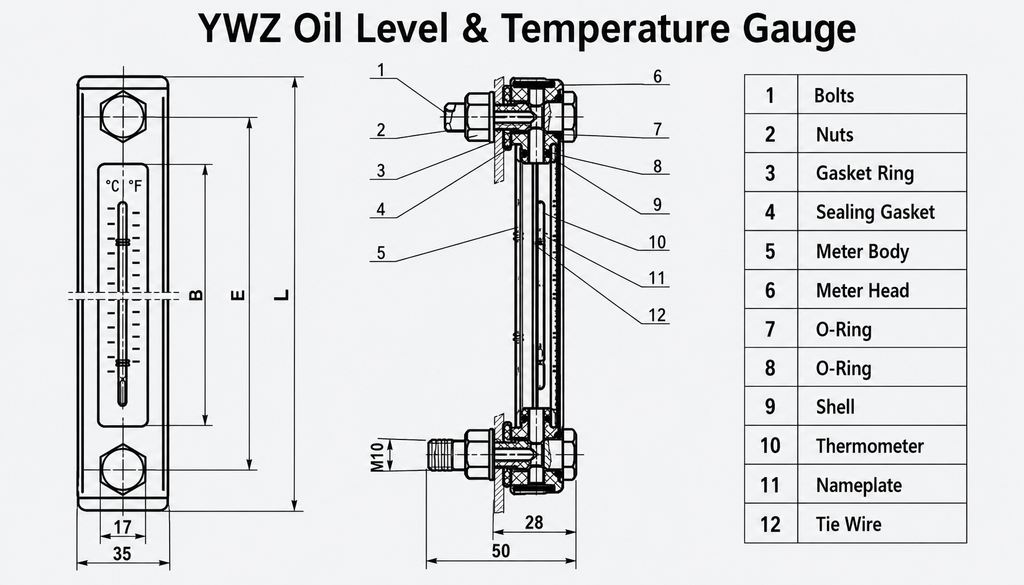

Size
| MODEL | Size(mm) | ||
|---|---|---|---|
| L (Length) | E (C-C) | B (Visible Length) | |
| YWZ-76 | 106 | 76 | 37 |
| YWZ-76T | 106 | 76 | 37 |
| YWZ-80 | 110 | 80 | 42 |
| YWZ-80T | 110 | 80 | 42 |
| YWZ-100 | 130 | 100 | 62 |
| YWZ-100T | 130 | 100 | 62 |
| YWZ-125 | 155 | 125 | 87 |
| YWZ-125T | 155 | 125 | 87 |
| YWZ-127 | 157 | 127 | 89 |
| YWZ-127T | 157 | 127 | 89 |
| YWZ-150 | 180 | 150 | 112 |
| YWZ-150T | 180 | 150 | 112 |
| YWZ-160 | 190 | 160 | 122 |
| YWZ-160T | 190 | 160 | 122 |
| YWZ-200 | 230 | 200 | 162 |
| YWZ-200T | 230 | 200 | 162 |
| YWZ-250 | 280 | 250 | 212 |
| YWZ-250T | 280 | 250 | 212 |
| YWZ-254 | 284 | 254 | 215 |
| YWZ-254T | 284 | 254 | 215 |
| YWZ-300T | 330 | 300 | 262 |
| YWZ-350T | 380 | 350 | 312 |
| YWZ-400T | 430 | 400 | 362 |
| YWZ-450T | 480 | 450 | 412 |
| YWZ-500T | 530 | 500 | 462 |
