Multi-Axis Level Indicators
Multi-axis level indicators combine two or more bubble vials to show horizontal, vertical and angled alignment.
Technical Specifications
| Product Type | Spirit Level vials |
|---|---|
| Measuring Directions | Horizontal, Vertical and 45° or custom angles |
| Vial Material | Acrylic |
| Body Material | ABS plastic, acrylic or aluminum alloy |
| Mounting | Magnetic, screw-mounted, adhesive-backed, strap-mounted or freestanding |
|---|---|
| Customization | Size, color, vial layout and packaging |
- Simultaneous leveling in two or more directions.
- Cross, T-shaped and custom configurations available.
- Housing, sensitivity and mounting options can be customized.
Level Vials
Product Description
Multi-Axis Level Indicators combine two or more bubble vials in a single housing to provide clear visual indication of alignment in multiple directions. Depending on the vial arrangement, they can indicate horizontal, vertical, 45° or other specified angles.

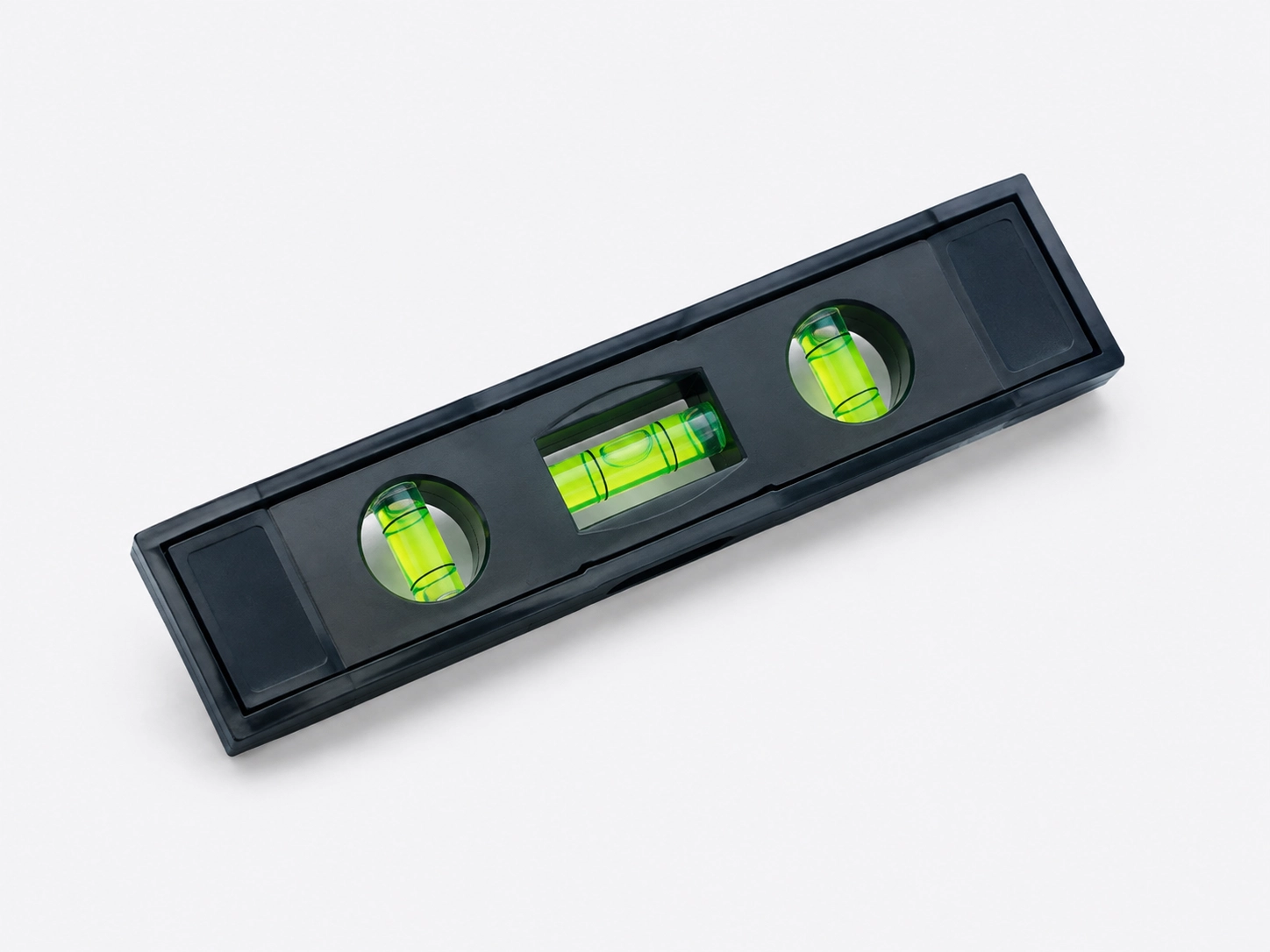

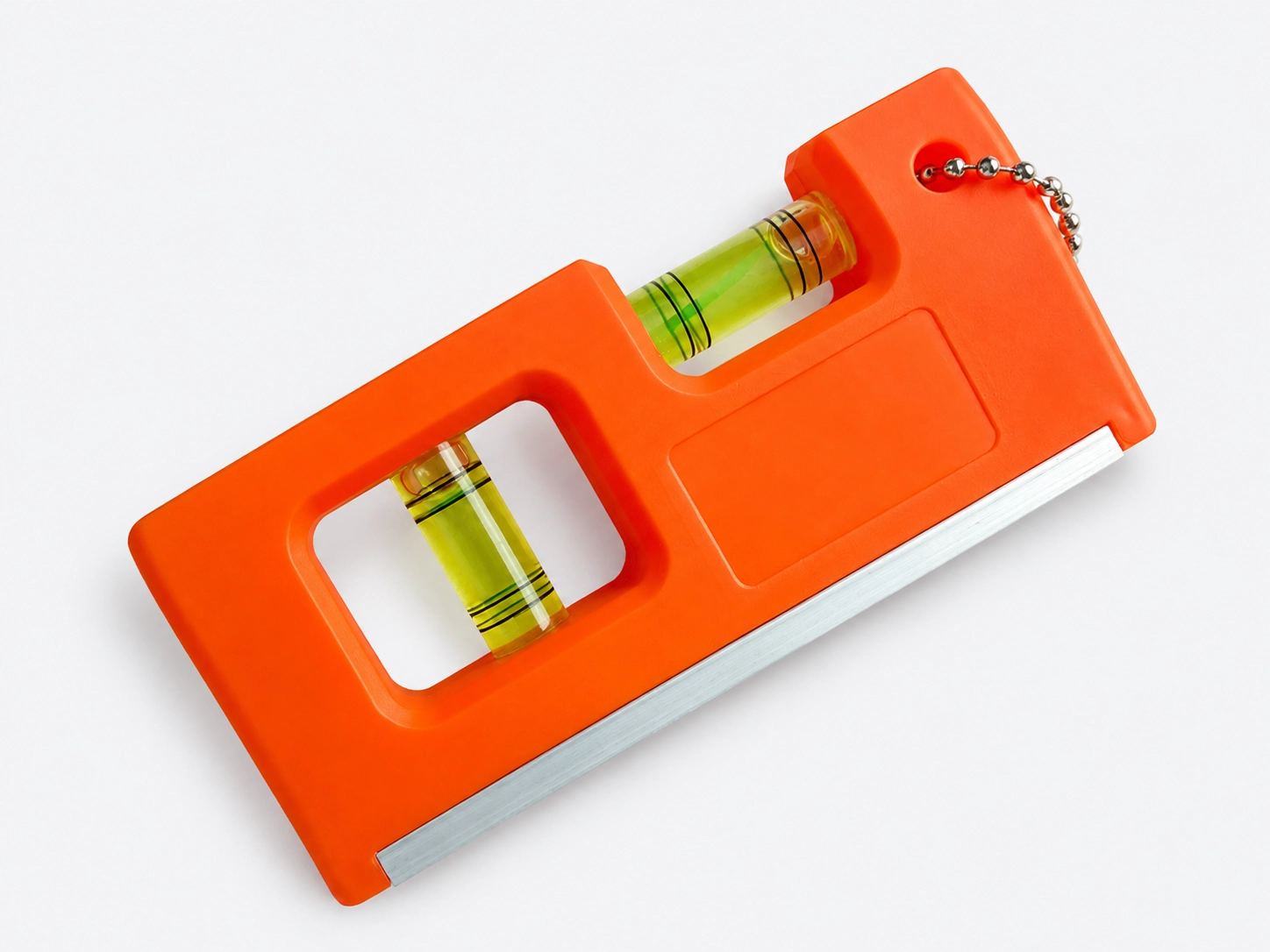

Available designs include two-axis indicators, three-vial indicators, magnetic indicators and folding level indicators. They can be used as compact standalone indicators or integrated into machinery, equipment, tools and OEM products.
Transparent acrylic vials with high-visibility liquid and clearly marked reference lines provide quick, power-free level indication. The housing can be manufactured from ABS plastic, acrylic or aluminum, with optional magnetic, screw-mounted, adhesive-backed, strap-mounted or freestanding.

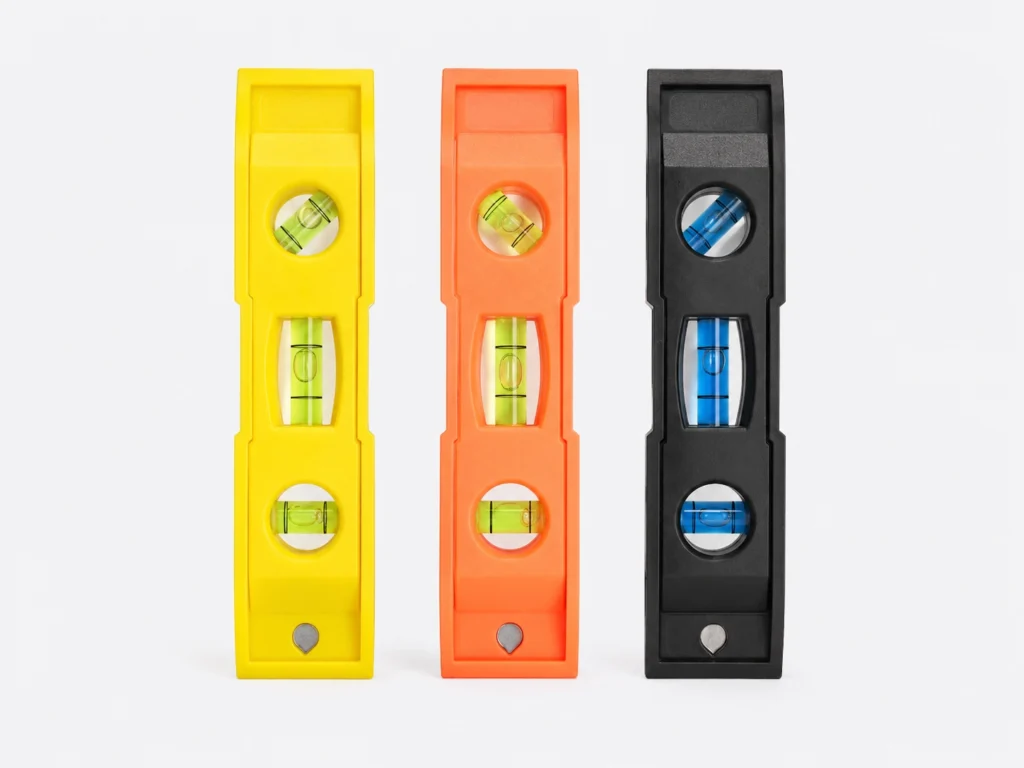

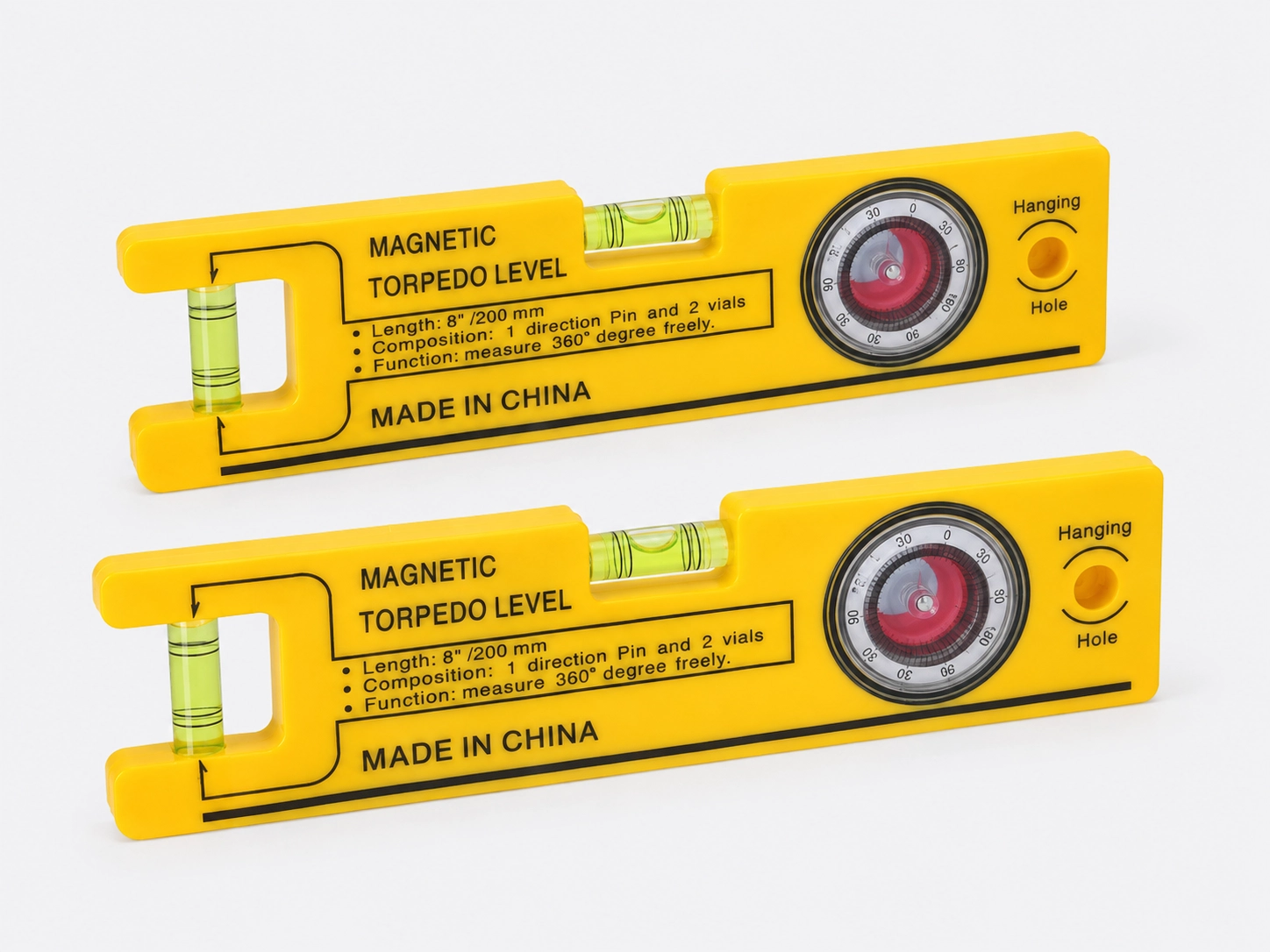

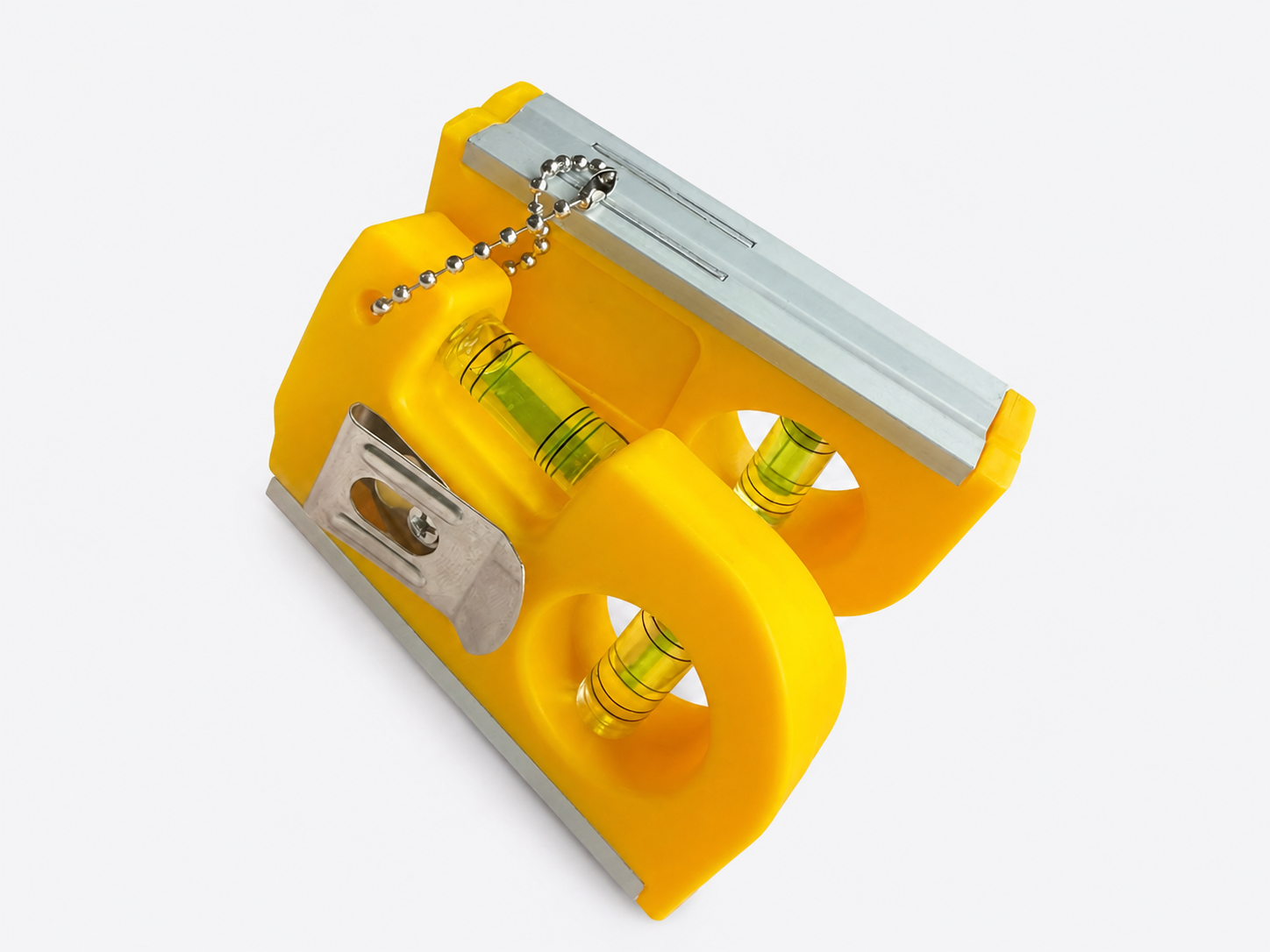

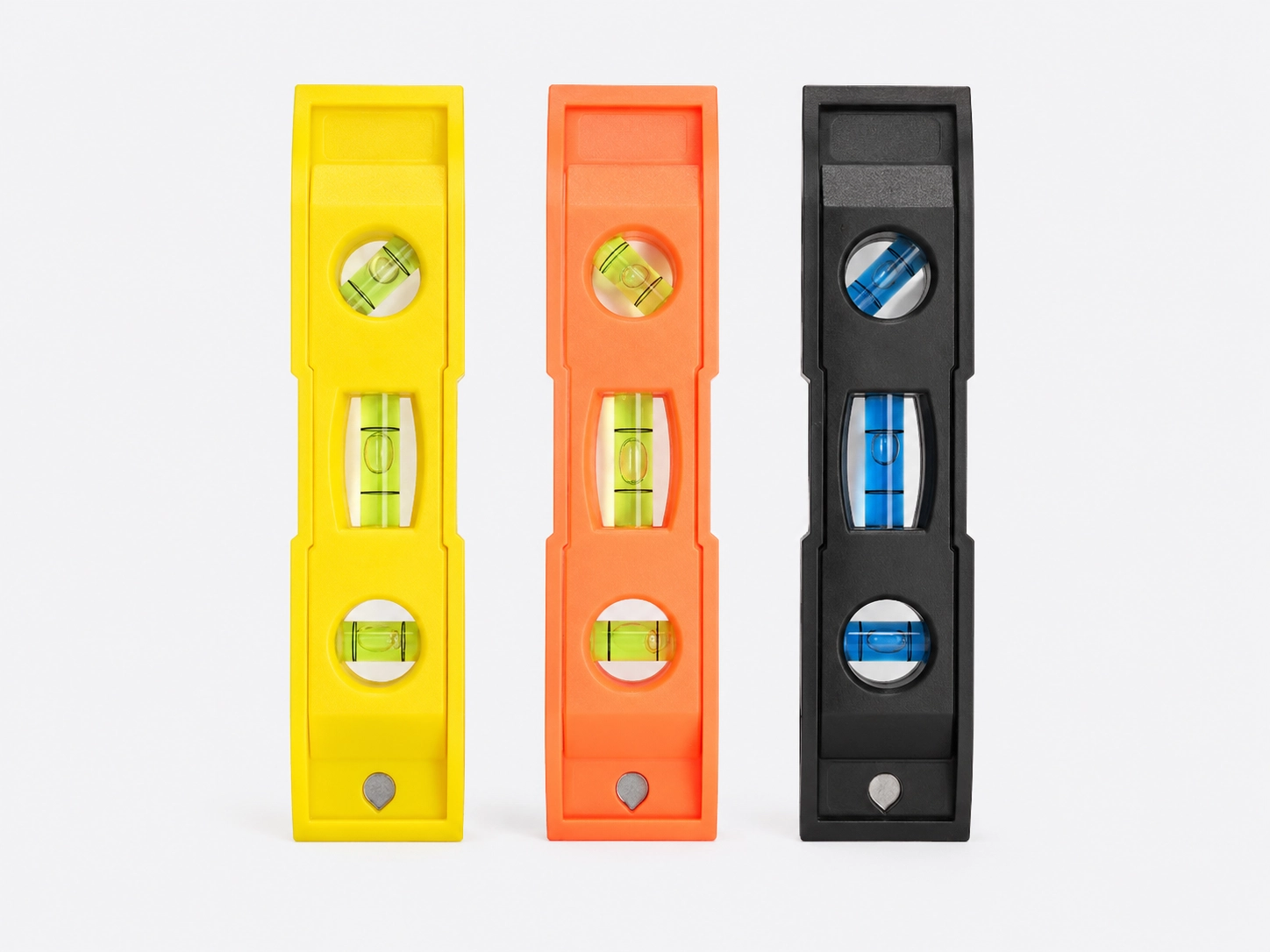

Magnetic models attach directly to steel surfaces, while folding models fit around posts, pipes, frames and corners to indicate alignment on adjacent surfaces. The housing size, vial arrangement, measuring direction, liquid color and mounting method can be customized for different applications.
Customization Requirements
Multi-axis level indicators do not have one universal size standard. Their dimensions, vial arrangement and mounting design vary according to the equipment and intended application. Custom products can be manufactured according to customer drawings or samples.
