Custom-Shaped Sight Glass

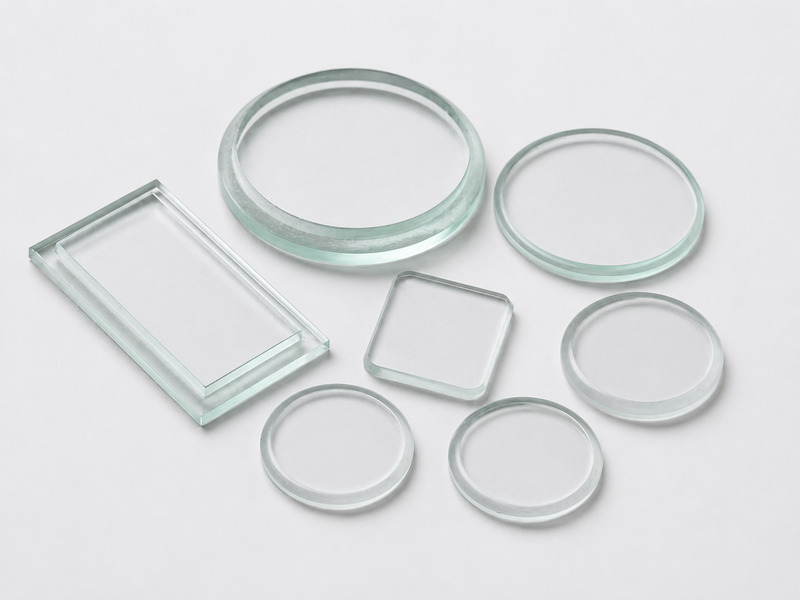

Custom-shaped sight glass is manufactured to your drawing or sample for non-standard viewing windows in tanks, vessels, pipelines, instruments, and industrial equipment.
Technical Specifications
| Product Type | Custom Sight Glass / Viewing Window |
|---|---|
| Materials | Borosilicate, Aluminosilicate, Quartz or Soda-Lime Glass |
| Shapes | Oval, Rectangular, Polygonal, Curved or Custom-Designed |
| Standards | According to Customer Drawings, Samples or Applicable Standards |
- Available in borosilicate, aluminosilicate, quartz, and soda-lime glass
- Custom sizes, shapes, holes, slots, and edge profiles are available.
- Compatible gaskets and accessories are available upon request.
Circular Sight Glass
Product Description
Custom-shaped sight glass is manufactured for equipment requiring non-standard dimensions, profiles or machined features. KUNYO supplies custom viewing windows based on drawings or samples, with material and processing requirements confirmed for each application.

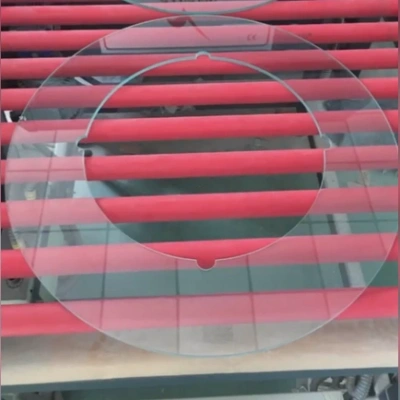

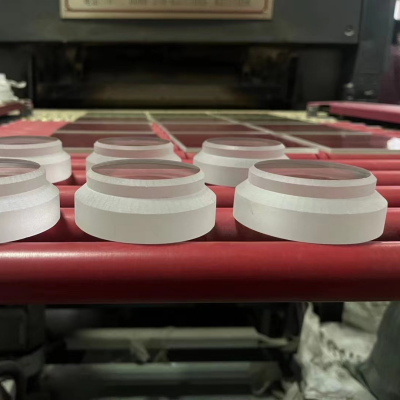

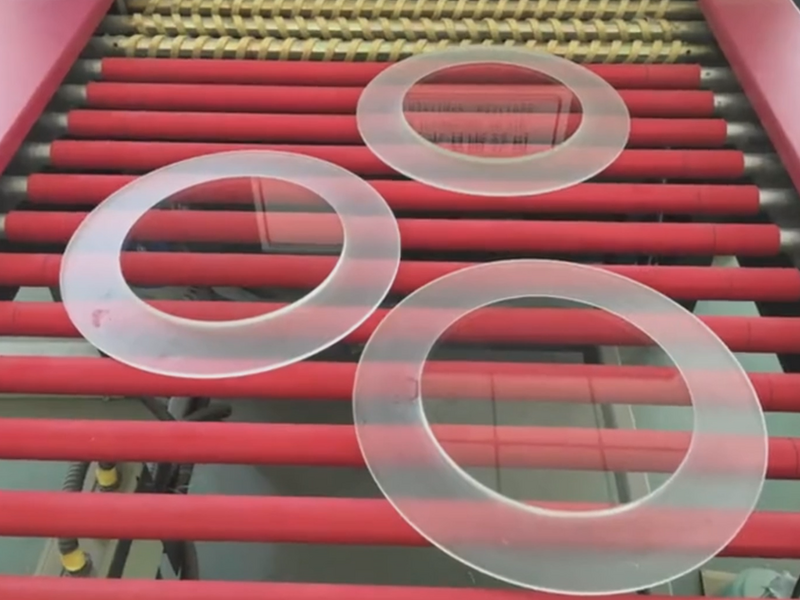

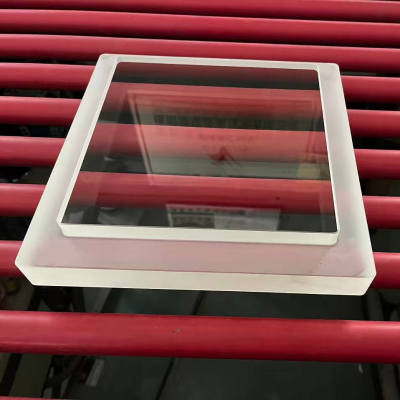

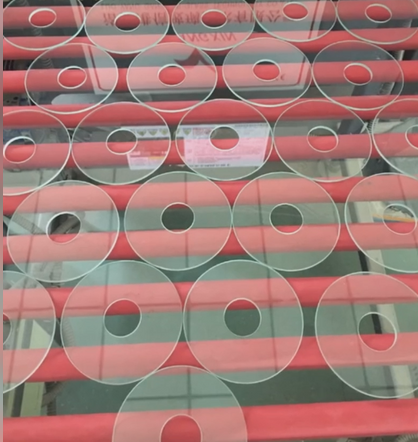

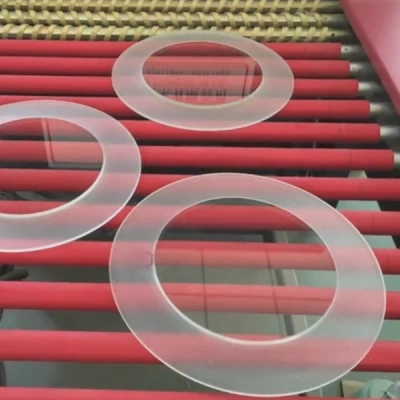

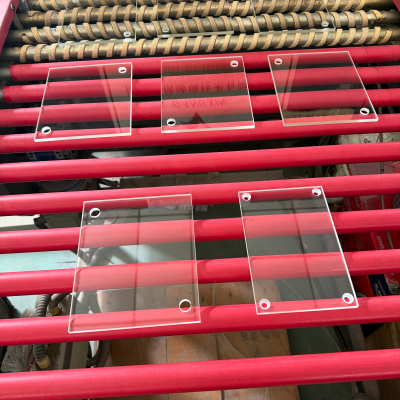

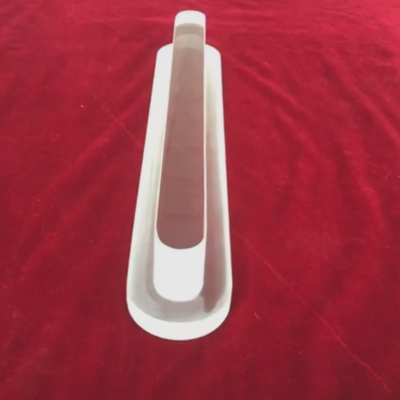

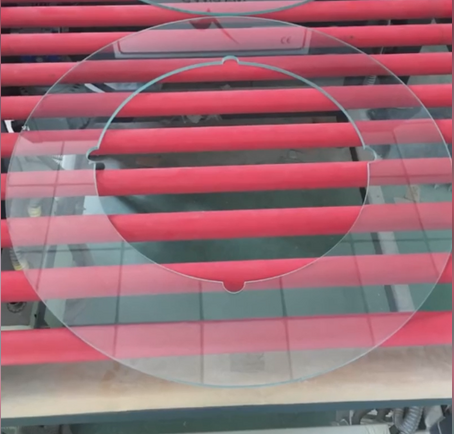

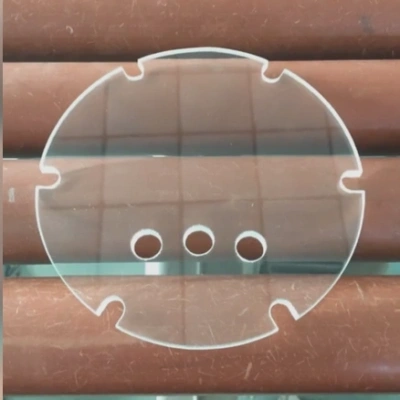

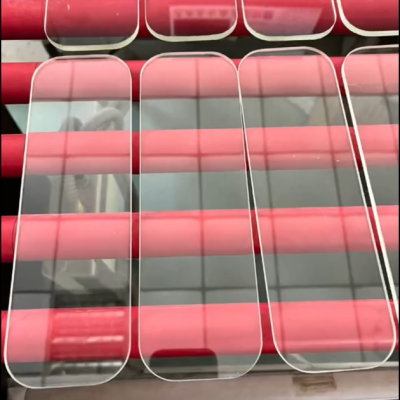

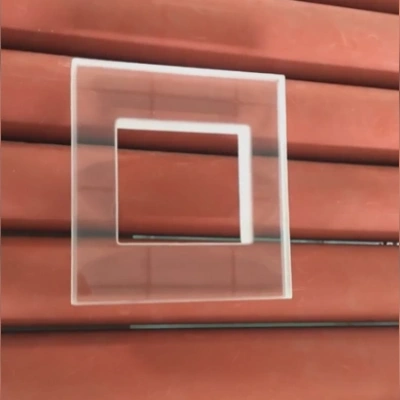

Available designs include oval, polygonal, curved and other irregular profiles, as well as glass with mounting holes, central openings, slots, notches, grooves, steps and special edge finishes. Material, thickness and processing method can be selected according to the operating temperature, pressure, thermal shock and chemical compatibility of the application.
We can provide borosilicate glass for general industrial and thermal applications, aluminosilicate glass for more demanding operating conditions, quartz glass for high-temperature or optical applications, and soda-lime glass for economical low-to-moderate-duty use.
Matching graphite, PTFE, rubber and other sealing gaskets can also be supplied to simplify installation and replacement.
Customization Requirements
To manufacture a custom-shaped sight glass accurately, please provide the following information:
- Dimensioned drawing, CAD file or physical sample
- Glass material
- Overall length, width and thickness
- Shape and corner-radius requirements
- Hole diameter, quantity and position
- Details of slots, grooves, notches or stepped profiles
- Edge finish, such as ground, polished, bevelled or chamfered
- Operating temperature and pressure
- Process medium and chemical compatibility requirements
- Required quantity
- Gasket, mica shield or accessory requirements
Drawings can be submitted in PDF, DWG, DXF or STEP format. If no drawing is available, clear photographs and a physical sample may be provided for evaluation.
