Circular Level Vials
Circular level vials provide quick two-direction leveling in a compact design.
Technical Specifications
| Product Type | Spirit Level Vial |
|---|---|
| Material | Acrylic (PMMA) or Glass |
| Sensitivity | 5′–90′ / 2 mm bubble movement |
| Liquid Color | Green, yellow, clear, blue or custom |
| Customization | Diameter, height, sensitivity, bubble size, markings and liquid color |
- Simultaneous leveling in two horizontal directions
- Standard and custom sizes are available
- Liquid color, marking and sensitivity can be customized
Level Vials
Product Description

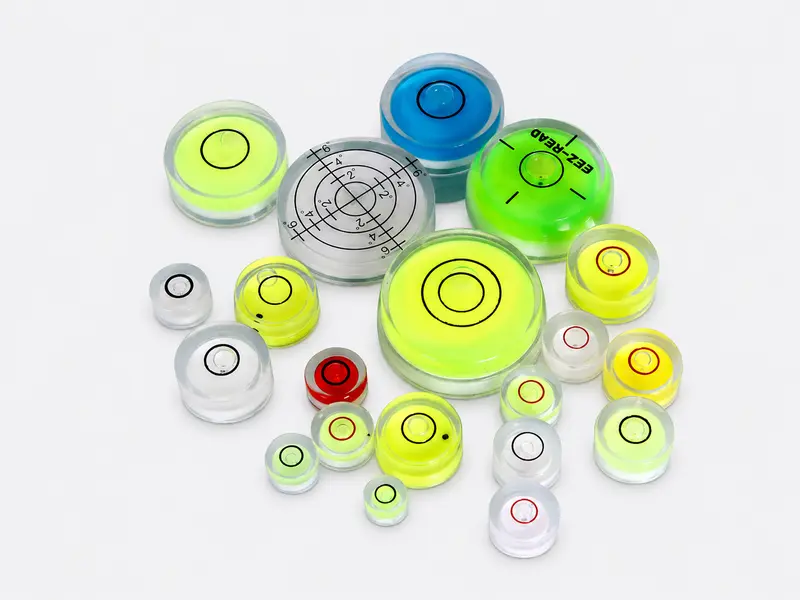

Circular Level Vials, also called bullseye level vials or round bubble level vials, are designed to indicate whether a surface is level in two horizontal directions at the same time. When the bubble is centered within the reference circle, the surface or instrument is horizontally aligned.
Unlike tubular vials, which mainly indicate inclination along one axis, circular vials detect tilt in any radial direction. Their compact round construction makes them suitable for installation in surveying instruments, tripods, cameras, weighing equipment, machine tools, furniture, recreational vehicles and other leveling devices.
We supply circular level vials in both acrylic and glass. Acrylic vials are lightweight, economical and resistant to everyday impact, making them suitable for general tools and high-volume OEM products. Glass vials offer excellent transparency, surface hardness and dimensional stability for instruments requiring consistent visual performance.
The vial body is filled with a low-viscosity colored liquid, leaving a clearly visible bubble. One or more concentric reference circles may be printed on the top surface to help the operator identify the level position quickly.

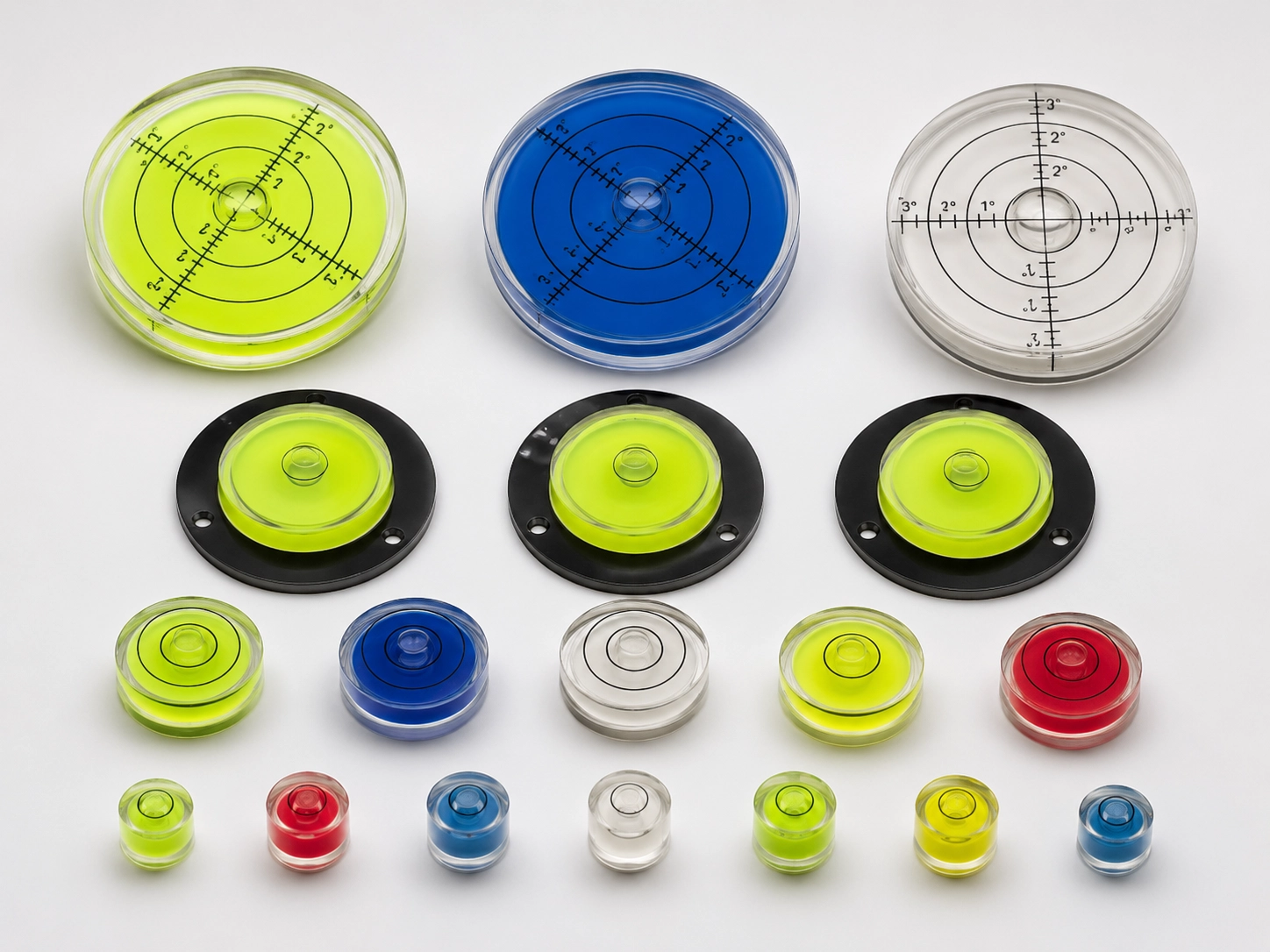

Sensitivity, size, liquid color, bubble size and reference markings can be adjusted according to the installation requirements of the customer’s equipment. Circular vials may also be supplied with flanges, housings, adhesive bases or other mounting structures under the separate Mounted Level Vials category.

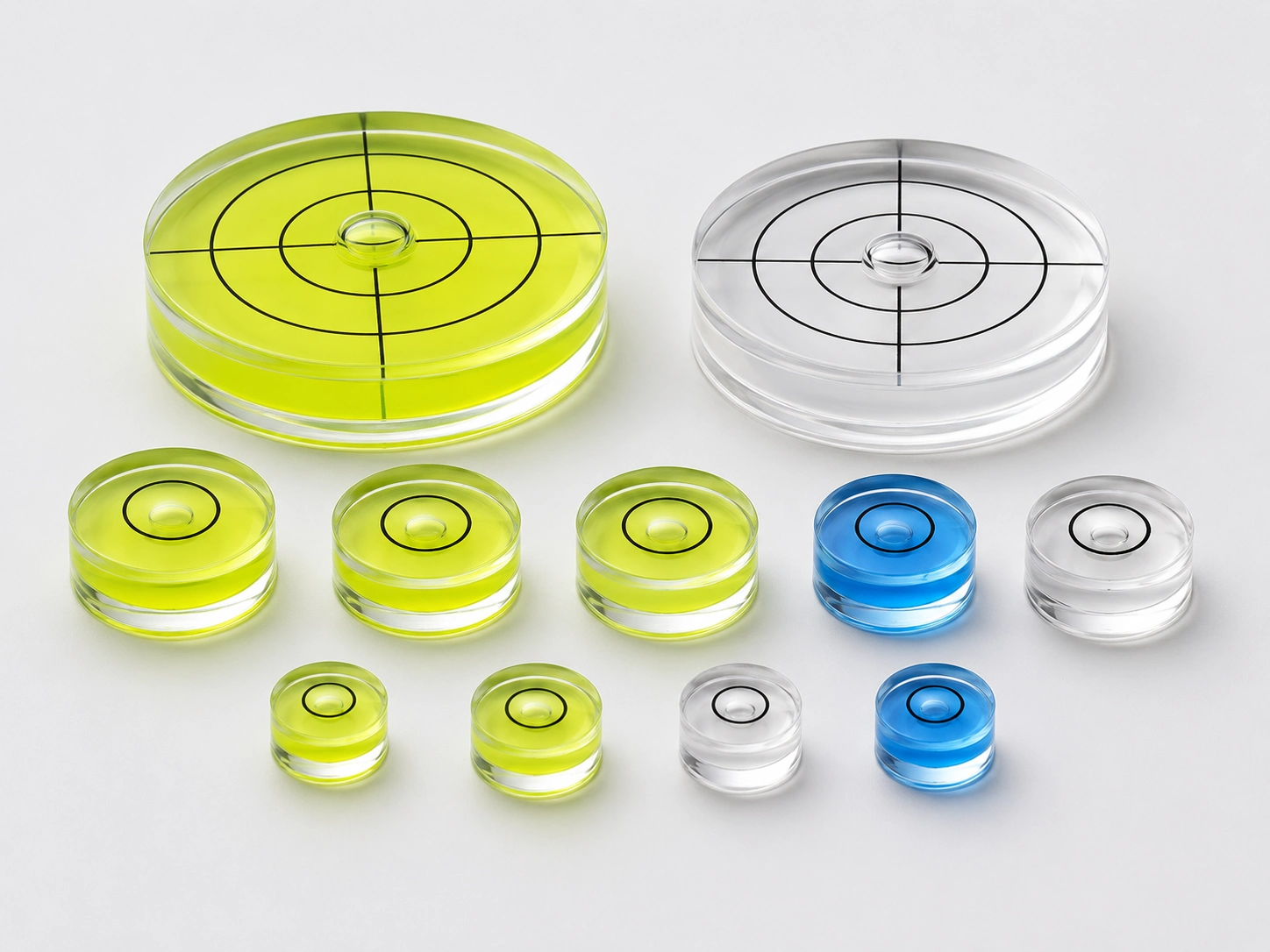

Acrylic circular vials are manufactured from transparent PMMA and are the most widely used option for general-purpose and OEM leveling products.
- Lightweight and economical
- Good transparency and bubble visibility
- Better resistance to everyday impact than glass
- Suitable for tools, equipment, tripods and consumer products
- Available in a broad range of diameters and liquid colors
- Easy to integrate into plastic or metal housings

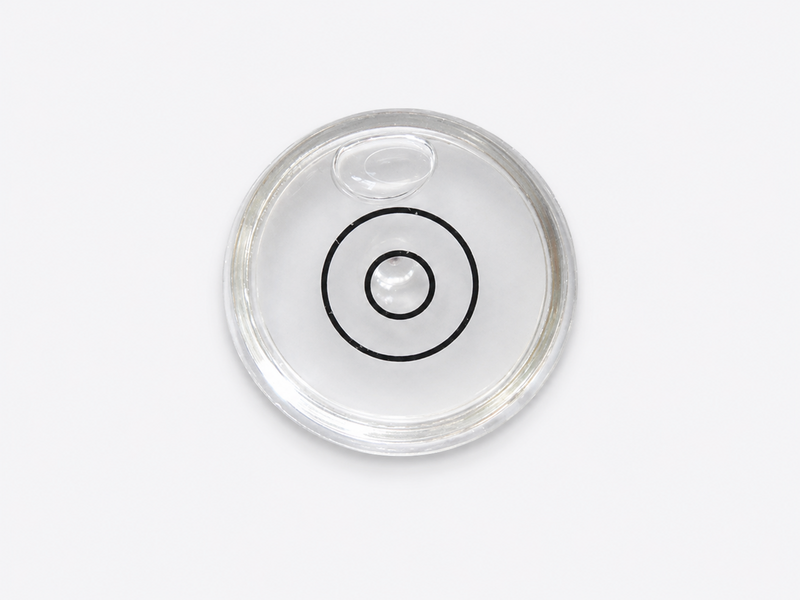

Glass circular vials are suitable for instruments and equipment where surface hardness, optical clarity and dimensional stability are important.
- Clear and stable viewing surface
- Better scratch resistance than acrylic
- Good long-term dimensional stability
- Suitable for precision instruments and industrial equipment
- Available with different sensitivities and reference-circle designs
- Custom glass type and dimensions available upon request
Sizes

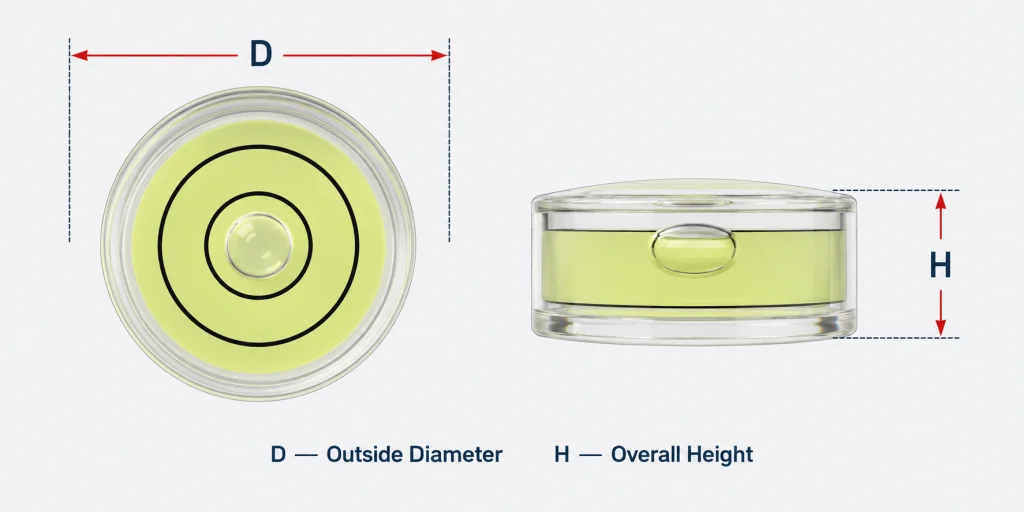

Acrylic Circular Level Vials
| Product Code | Diameter D | Height H |
|---|---|---|
| KCV-0806 | 8 mm | 6 mm |
| KCV-1006 | 10 mm | 6 mm |
| KCV-1206 | 12 mm | 6 mm |
| KCV-1208 | 12 mm | 8 mm |
| KCV-1307 | 13 mm | 7 mm |
| KCV-1408 | 14 mm | 8 mm |
| KCV-1508 | 15 mm | 8 mm |
| KCV-1710 | 17 mm | 10 mm |
| KCV-1809 | 18 mm | 9 mm |
| KCV-1910 | 19 mm | 10 mm |
| KCV-2009 | 20 mm | 9 mm |
| KCV-2510 | 25 mm | 10 mm |
| KCV-3010 | 30 mm | 10 mm |
| KCV-3212 | 32 mm | 12 mm |
| KCV-4010 | 40 mm | 10 mm |
Glass Circular Level Vials

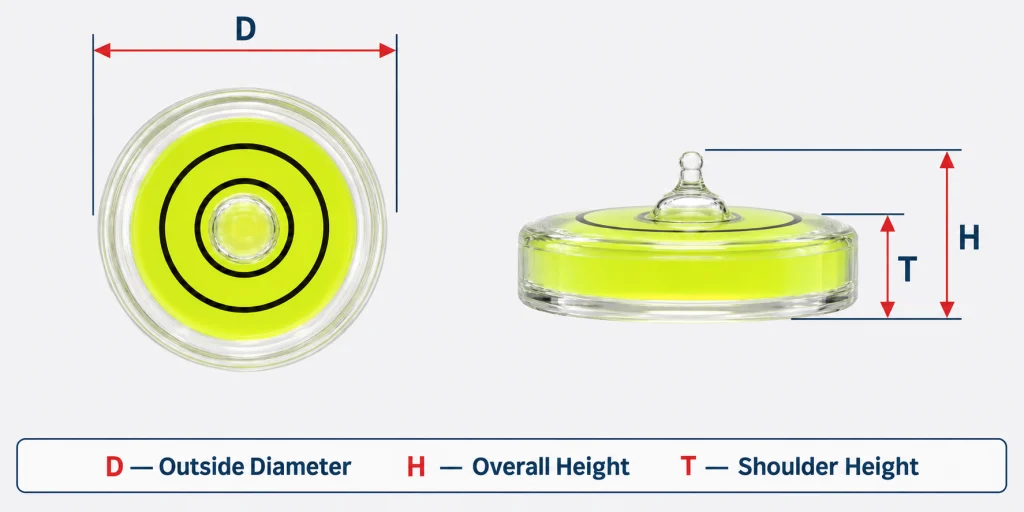

Glass circular level vials are available with or without a bottom tip. The following table lists commonly requested dimensions and sensitivities. Other sizes, bubble dimensions and sensitivities can be customized.
| Product Code | Outside Diameter D | Overall Height H | Shoulder Height T | Sensitivity |
|---|---|---|---|---|
| KGC-0905 | 9 mm | 5 mm | — | 30′/2 mm |
| KGC-1009 | 10 mm | 9 mm | 6 mm | 25′/2 mm |
| KGC-1108 | 11 mm | 8 mm | 5 mm | 8′/2 mm |
| KGC-1208 | 12 mm | 8 mm | 5 mm | 15′/2 mm |
| KGC-1308 | 13 mm | 8 mm | 5 mm | 8′/2 mm |
| KGC-1408 | 14 mm | 8 mm | 5 mm | 15′/2 mm |
| KGC-1406 | 14 mm | 5.5 mm | — | 15′/2 mm |
| KGC-1506 | 15 mm | 6 mm | — | 15′/2 mm |
| KGC-1508 | 15 mm | 8 mm | 5 mm | 8′/2 mm |
| KGC-1510 | 15 mm | 10 mm | 6 mm | 10′/2 mm |
| KGC-1608 | 16 mm | 8 mm | 5 mm | 8′/2 mm |
| KGC-1610 | 16 mm | 10 mm | 6 mm | 10′/2 mm |
| KGC-1707 | 17 mm | 6.5 mm | — | 25′/2 mm |
| KGC-1710 | 17 mm | 10 mm | 6 mm | 8′/2 mm |
| KGC-1806 | 18 mm | 6 mm | — | 25′/2 mm |
| KGC-1811 | 18 mm | 11 mm | 6 mm | 8′/2 mm |
| KGC-2011 | 20 mm | 11 mm | 6 mm | 10′/2 mm |
| KGC-2511 | 25 mm | 11 mm | 6 mm | 60′/2 mm |
| KGC-2504 | 25 mm | 4 mm | — | 60′/2 mm |
